A320 NGF

details

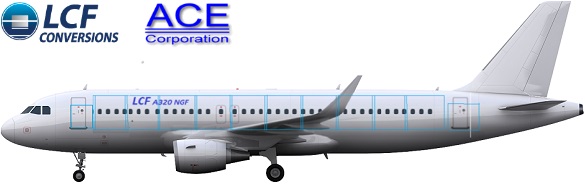

Concept development of the A320 PTF family conversion is currently under way. This programme is a joint venture between LCF Conversions and ACE Corporation of the USA. When launched this programme will provide main deck freight door capability on A321, A320 and A319 aircraft permitting accommodation of standard industry ULDs on the main and lower decks as follows:

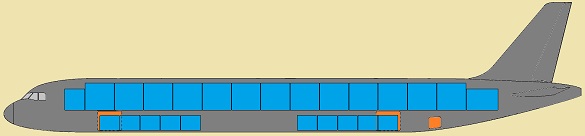

A321 Next Gen: 25 ULDs: (13 AAY/AAA +2, & 10 LL AKH) Total Usable Vol: 215.2 m³ (7602 ft³)

A321

A320 Next Gen: 19 ULDs: (10 AAY/AAA +2, & 7 LL AKH) Total Usable Vol: 167.0 m³ (5898 ft³)

A320

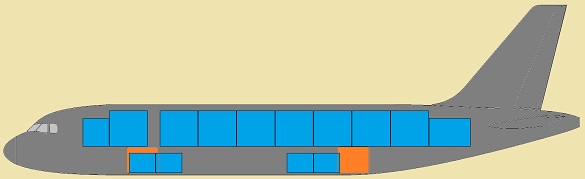

A319 Next Gen: 14 ULDs: (8 AAY/AAA +2, & 4 LL AKH) Total Usable Vol: 132.5 m³ (4679 ft³)

A319

A320

The NGFD is designed to improve safety with a lighter structure and lower operational and maintenance costs.

A320

The NGFD Conversion for the A320 fleet is a unique main deck freighter conversion solution that addresses the design and certification challenges associated with the A320 fleet.

The A320 NGFD is an innovative solution that will be more efficient than conventional freighter conversion solutions; it will be functional, cost effective and most importantly, it offers significant economies of scale with a one-size-fits-all solution covering all three A320 variants.

A320

A320

A320
